Remote control

Fauste Player can be read and operated over the network through an HTTP API, with live updates, and through OSC. A web page, a phone app, a station’s automation or a control surface can use them. It is off until you turn it on, and at first it only answers on this computer.

Turning it on

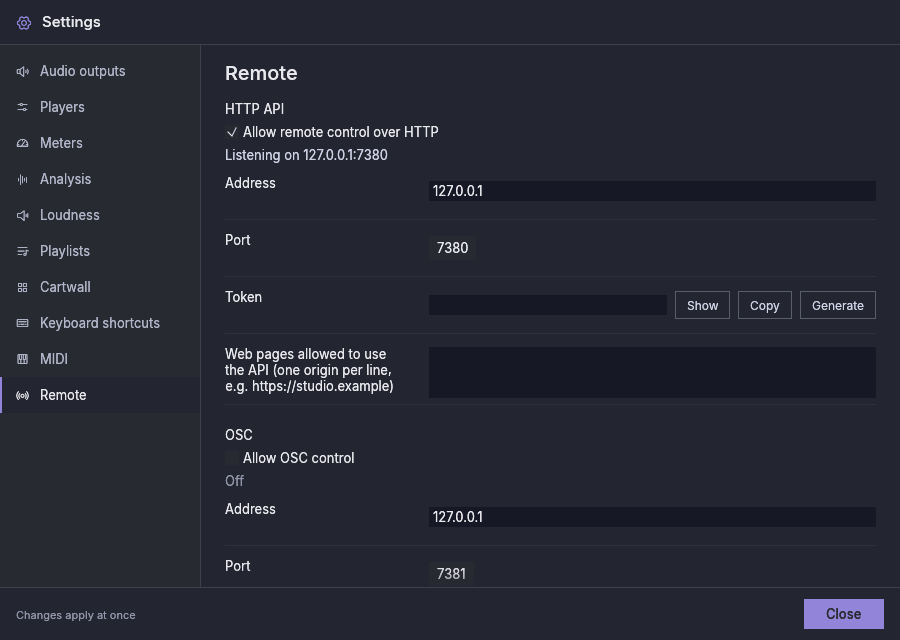

Open Settings → Remote and tick Allow remote control over HTTP (or Allow OSC control). The line under each switch says whether the server is listening, and where, or why it did not start. Changes apply at once; there is no need to restart. A text field (an address, the token, a list) applies when you leave it, open another section or close Settings; a value that is not valid yet keeps the one in use, and Esc cancels what you typed.

You can also edit config.json while Fauste Player is closed (see Data and backups for where it is). Inside the "config" object, set remote.http.enabled to true:

{
  "schema_version": 1,
  "config": {
    …
    "remote": {
      "http": { "enabled": true }
    }
  }
}

It listens on http://127.0.0.1:7380. Starting it never plays anything; only requests act.

Listening on the studio network

To reach it from other computers, set bind to 0.0.0.0 (or one of this computer’s addresses) and set a token of at least 16 characters. In Settings → Remote, Generate makes a long random token. It is hidden until you press Show, and Copy puts it on the clipboard for the client. Without a token the server refuses to start, and the log says why.

"remote": {
  "http": {
    "enabled": true,
    "bind": "0.0.0.0",
    "port": 7380,
    "token": "a-long-random-secret-of-your-own"
  }
}

Clients send the token as Authorization: Bearer <token>. The API is not encrypted. Keep it on a trusted studio network, or put it behind a reverse proxy with HTTPS.

Web pages

A web page served from another address can use the API only if its origin (for example https://studio.example) is listed in cors_origins. Requests from other pages are refused, even on this computer, so a page you happen to have open cannot drive the player. "*" (any origin) is only accepted together with a token.

What a client can do

A client can:

• read the players, playlists, tracks (with cover and waveform) and the cartwall;
• play, pause, stop, fade, restart and go back;
• choose the next entry (the entry on air too: it plays once more), pre-listen, and seek (on a stopped player a seek chooses where Play starts the next entry, and a seek before its cue-in starts at the cue-in);
• set volumes, modes, stop-after-current, and the repeat and stop-after marks of an entry;
• fire, stop and pre-listen carts, and change the cart page shown;
• edit: create, rename and delete playlists; add a track that is already loaded, and remove, move or duplicate entries; create, rename, resize and delete cart pages, and set up a cart with a loaded track; set or reset markers; exclude a track from loudness normalization or trim it.

Removing what is on air is refused, as it is on screen. Files that are not loaded yet cannot be added remotely: they live on this computer, so add them here first.

A button that is greyed out on screen is refused remotely too.

A player whose Main output is bit-perfect keeps working remotely, with the same limits as on screen: play and previous switch at once, without a crossfade, and its volume is held at 100 %. A volume below 100 % is refused (409, with the reason), and exactly 100 % is accepted. Each player says whether its volume is held (fader_locked).

Each track carries its loudness measurement (loudness, null until it is measured) and its setting (loudness_edit: excluded and trim_db). A playing or paused player, and each playing cart, says which normalization gain its track started with and why (normalization: gain_db and a status such as applied, not_measured or bit_perfect). PUT /api/v1/tracks/<id>/loudness with {"excluded": false, "trim_db": -1.5} changes the setting, as the Loudness… popup does; a trim beyond the maximum trim is refused (409, with the reason). The normalization settings themselves (on or off, the target, the limits) are only changed on this computer. OSC and MIDI have no loudness controls.

The full reference is in the technical documentation.

Try it from a terminal:

curl -s http://127.0.0.1:7380/api/v1/players
curl -s -X POST http://127.0.0.1:7380/api/v1/players/<id>/play

Live updates

A client can follow changes as they happen instead of asking again and again. GET /api/v1/events is a stream of events: the whole state first, then each player, playlist, track or cartwall change, and the times of what is playing a few times a second.

curl -sN http://127.0.0.1:7380/api/v1/events

A web page uses EventSource. Browsers cannot send the token as a header there, so it goes in the address: /api/v1/events?token=<token>.

OSC

OSC is the usual protocol of control surfaces, lighting desks and show control software. Turn it on with remote.osc.enabled. It listens on UDP port 7381 of this computer. To accept packets from other computers, set remote.osc.bind to 0.0.0.0 and list their addresses or subnets in remote.osc.allowed_sources (for example "192.168.1.0/24"). OSC has no password, so keep it on a trusted studio network.

Players are numbered 1, 2, 3… as they appear on screen. Carts are numbered in the page shown.

oscsend localhost 7381 /fauste/player/1/play
oscsend localhost 7381 /fauste/player/2/volume f 0.8
oscsend localhost 7381 /fauste/cart/3/fire

A surface that wants to show the state (lights, names, countdowns) subscribes, and then receives every value once and afterwards only what changes. When a player or a cart button goes away (fewer players, a smaller page), its addresses receive an empty value once, so the surface clears them. It must subscribe again within a minute (subscription_ttl_secs) to keep receiving:

oscdump 9000 &
oscsend localhost 7381 /fauste/subscribe i 9000

On a player whose Main output is bit-perfect, /volume messages are refused (the log notes it) and the player sends /volume-locked 1 to subscribers (0 otherwise).

A subscriber can name any port of its own address, and up to max_subscribers are kept. Anyone allowed to send can therefore also subscribe. This is one more reason to keep OSC on a trusted network.

oscsend and oscdump come with liblo (liblo-tools on Debian and Ubuntu). The full list of addresses is in the technical documentation.

All settings

Values out of range are corrected when the file is loaded, and the correction is logged.
